REF192GPZ
Manufacturer:
Analog Devices
Mfr.Part #:
REF192GPZ
Datasheet:
Description:

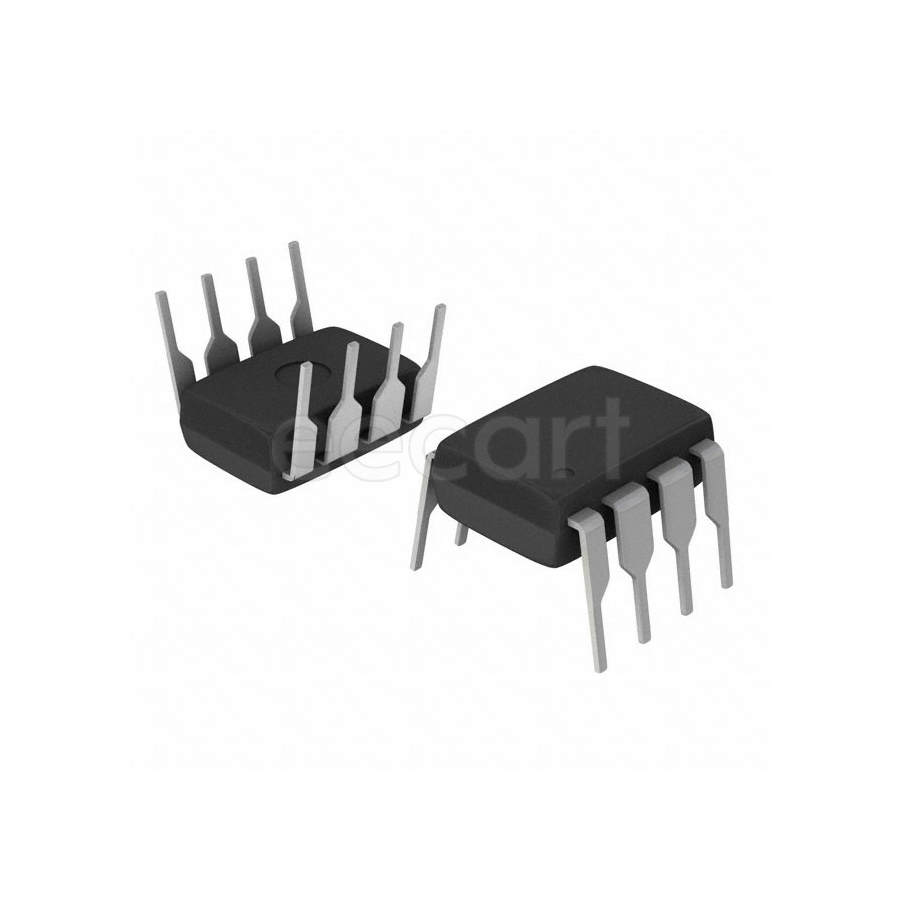

Voltage References PDIP-8 Through Hole Output Voltage:2.5 V 30 mA 0.08 % 10 ppm/°C
| Parameter | Value |
|---|---|
| Tolerance | 0.4 % |
| Length | 9.27 mm |
| Width | 7.24 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Temperature Coefficient | 10 ppm/°C |
| Height | 3.43 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Current Rating | 45.0 µA |
| Min Input Voltage | 3 V |
| Output Current | 30 mA |
| Output Voltage | 2.5 V |
| Output Type | Fixed |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Max Output Current | 30 mA |
| Number of Channels | 1 |
| Operating Supply Current | 45 µA |
| Quiescent Current | 45 µA |
| Max Input Voltage | 15 V |
| Reference Type | Series |
| Nominal Supply Current | 45 µA |
| Min Output Voltage | 2.5 V |
| Max Output Voltage | 2.5 V |
| Reference Voltage | 2.5 V |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | PRODUCTION (Last Updated: 2 weeks ago) |
| Initial Accuracy | 0.08 % |
| Shunt Current | 30 mA |
| RoHS | Compliant |
| Packaging | Tube |
Stock: 19
Distributors
pcbx
pcbxUnit Price$5.09367
Ext.Price$5.09367
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.09367 | $5.09367 |
| 10 | $3.69244 | $36.92440 |
| 25 | $3.34100 | $83.52500 |
| 50 | $3.02303 | $151.15150 |
| 100 | $2.77852 | $277.85200 |
| 300 | $2.62737 | $788.21100 |
| 500 | $2.48443 | $1242.21500 |
